TDP-6 electric one punch single punch small tablet press machine for pharma

TDP-6 electric one punch single punch small tablet press machine for pharma

TDP-6 electric one punch single punch small tablet press machine for pharma
TDP-6 electric one punch single punch small tablet press machine for pharmaTDP-6 electric one punch single punch small tablet press machine for pharmaTDP-6 electric one punch single punch small tablet press machine for pharmaTDP-6 electric one punch single punch small tablet press machine for pharma
CategoriesTablet Press Machine
AlbumView larger image
BrandLTPM CHINA
ModelZP-17D
ModelTDP-5
Max. Pressure50KN
Max. Dia.Round: Φ20
Max. Filling Depth18mm
Max. Thickness7.5mm
Capacity4500pcs/hour
Motor Power750W.1400r/min 110V 50Hz
Overall Dimension650×440×650mm
Weight120kg
Unit PriceUS $ 1600 / set
FOB portNINGBO
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2019-10-17
Detail Information

TDP-6 electric one punch single punch small tablet press machine for pharma


Application:

That machine is a single press automatic for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Lab, Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on. It is a small desktop machine, can pressing the tablet electronically and continuously, also can pressing the tablet manually. The machine can be installed on one set of punch mould, the depth of filling material and the thickness of the tablets can be adjustable.

This machine is used for pressing different kinds of granular raw materials into round tablets. It is applicable to trial manufacturing in lab or batch production in small amount different kinds of tablets, sugar pieces, calcium tablets and tablets of abnormal shape. It features a small desktop type press for motive and continual sheeting. It can also be hand-operated. Only one pair of punching die can be erected on this press. Both filling depth of material and thickness of tablet are adjustable.


Main Technical Data:

Model

TDP-5

Max. Pressure

50KN

Max. Dia.

Round: Φ20

Max. Filling Depth

18mm

Max. Thickness

7.5mm

Capacity

4500pcs/hour

Motor Power

750W.1400r/min 110V 50Hz

Overall Dimension

650×440×650mm

Weight

120kg

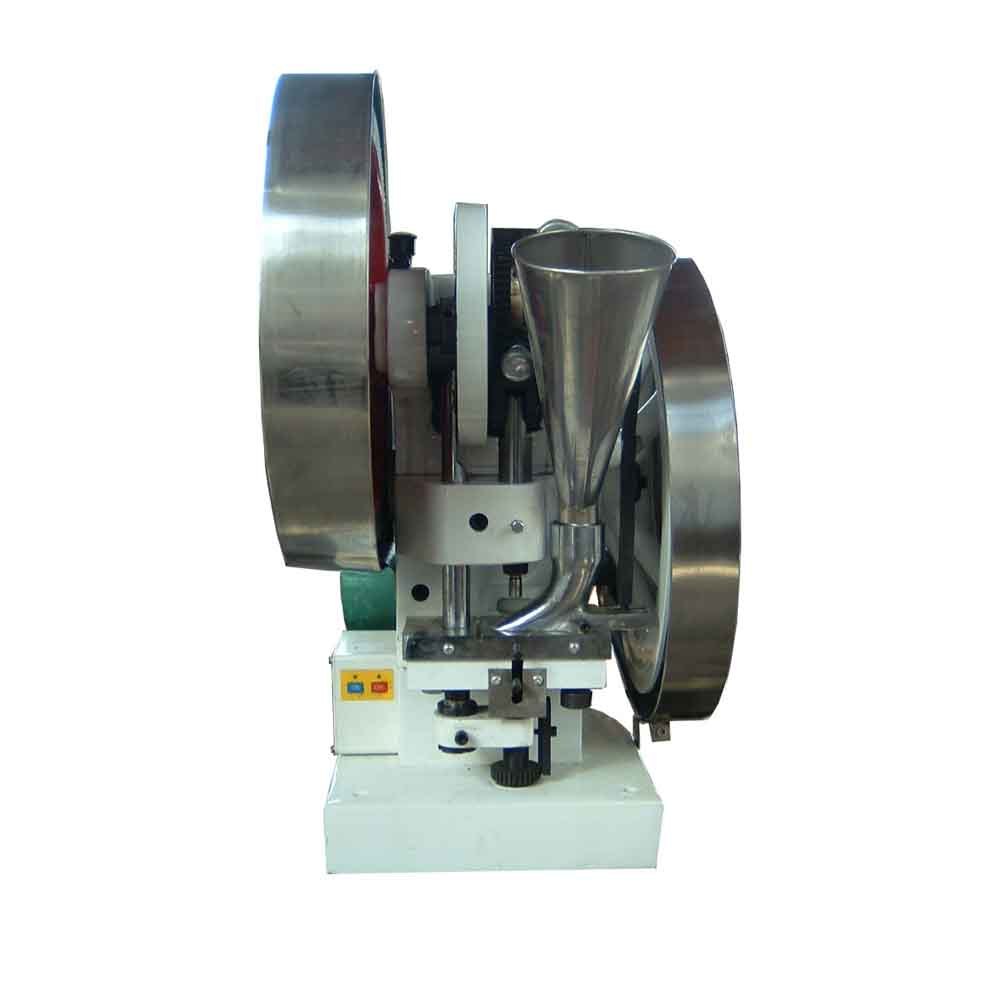

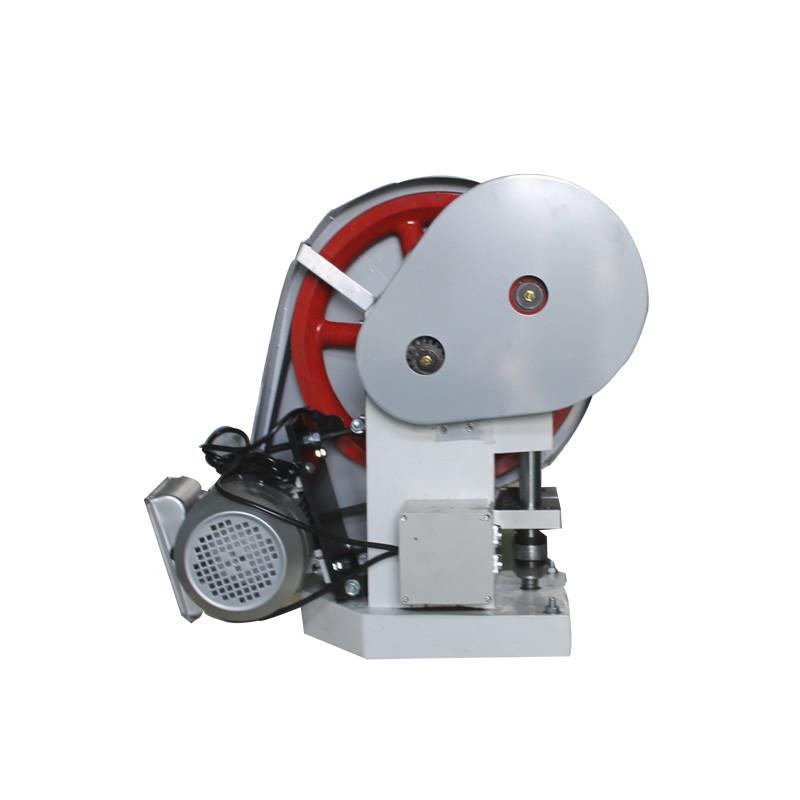

Machine Pictures:


Sample Photo
