DP-50 single punch tablet press machine Tablet Pressing Machine diy pill press machine

DP-50 single punch tablet press machine Tablet Pressing Machine diy pill press machine

DP-50 single punch tablet press machine Tablet Pressing Machine diy pill press machine
DP-50 single punch tablet press machine Tablet Pressing Machine diy pill press machineDP-50 single punch tablet press machine Tablet Pressing Machine diy pill press machineDP-50 single punch tablet press machine Tablet Pressing Machine diy pill press machine
CategoriesTablet Press Machine
AlbumView larger image
BrandLTPM CHINA
ModelZP-17D
Type No.DP-50
The max pressure50KN
The max diameter of the pressed tablet25mm
The max filling depth20mm
The thickness of the pressed tablet10mm
Capacity3600 tablets per hour
power1.5kw
Dimension580*500*830mm
Weight150kg
Unit PriceUS $ 6600 / set
FOB portNINGBO
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2019-10-17
Detail Information

DP-50 single punch tablet press machine Tablet Pressing Machine diy pill press machine

Application:

That machine is a single press automatic for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Lab, Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on. It is a small desktop machine, can pressing the tablet electronically and continuously, also can pressing the tablet manually. The machine can be installed on one set of punch mould, the depth of filling material and the thickness of the tablets can be adjustable.


Main Technical Data:

Type No.

DP-50

The max pressure

50KN

The max diameter of the pressed tablet

25mm

The max filling depth

20mm

The thickness of the pressed tablet

10mm

Capacity

3600 tablets per hour

power

1.5kw

Dimension

580*500*830mm

Weight

150kg

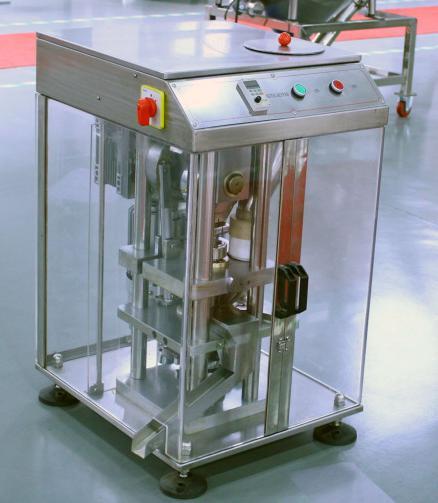

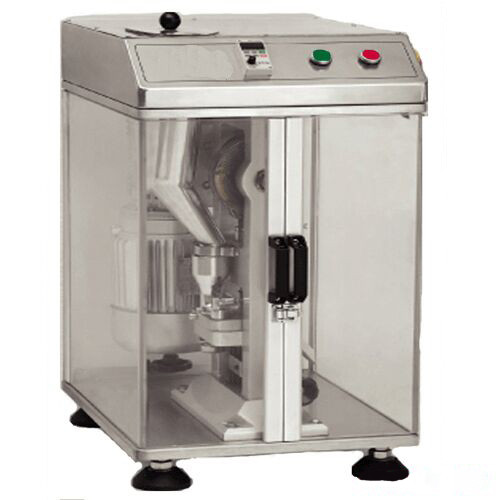

Machine Pictures:


Sample Photo
