Stainless Steel Hot Air Circulating Drying Dry Oven Dryer

Stainless Steel Hot Air Circulating Drying Dry Oven Dryer

Stainless Steel Hot Air Circulating Drying Dry Oven Dryer
Stainless Steel Hot Air Circulating Drying Dry Oven DryerStainless Steel Hot Air Circulating Drying Dry Oven Dryer
CategoriesHot Air Circulation Drying Machine
AlbumView larger image
BrandLTPM CHINA
ModelCTC-1
PowerElectronic
CertificationCE
After-sales Service ProvidedEngineers available to service machinery overseas
Drying cart (pcs)2
Dimension(L*W*H)2430*1200*2375
Weight200kg
FOB portNINGBO
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2019-10-17
Detail Information

Hot Air Circulation Drying Oven

Application:

Mixer CT-C series of hot air circulation drying oven is widely used in pharmaceutical, foodstuff, chemical and other industries to heat materials drying and dehumidification.

Mixer machine working principle is use of steam or electric heater to heat the air, and then by heating the air circulation drying was carries out on the material. Everywhere in the temperature difference is small, drying evenly. In dry engineering continually added fresh air and discharging hot and humid air, so to keep proper temperature in the oven, the drying process is always in the best state.

Feature:

1.Heating source includes three modes steam, electricity and electrical steam.

2.Service temperature: steam heating 50-150; max 150; electrical heating 50-350.

3.The temperature is automatically controlled, and is recorded by the recorder;

4.Inner wall of oven adopts full welding and arc transition, with no dead angle.

5.The whole machine has favorable sealing performance. The unique guide rail sealing device guarantees fine sealing performance for the whole machine.

6.The air inlet port is equipped with high efficiency air filter; dehumidification port is equipped with medium efficiency air filter.


Main Technical Data:

Model & spec.

Drying quantity per time (kg)

Power of blower fan (kw)

Consumed steam(L/min)

Drying cart (pcs)

Drying pan(pcs)

Machine Size (mm)

Upper and lower temp. difference

CTC-0

25

0.45

5

0

24

1550*1000*2044

±2

CTC-1

100

1.1

20

2

48

2300*1200*2433

±2

CTC-2

200

1.1

40

2

96

2300*2200*2433

±2

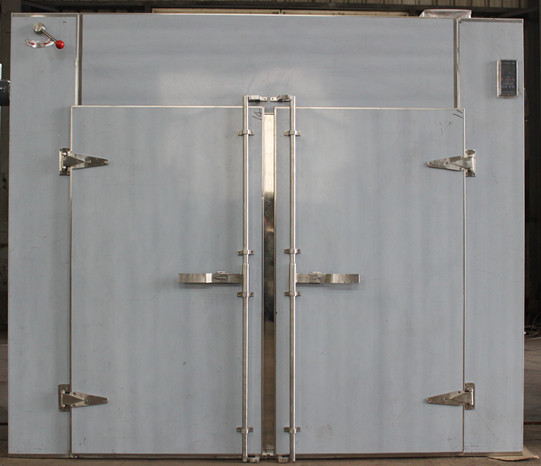

Machine Picture:
