CE certified Semi Automatic Capsule Filling Machine Price For Capsule

CE certified Semi Automatic Capsule Filling Machine Price For Capsule

CE certified Semi Automatic Capsule Filling Machine Price For Capsule
CE certified Semi Automatic Capsule Filling Machine Price For CapsuleCE certified Semi Automatic Capsule Filling Machine Price For CapsuleCE certified Semi Automatic Capsule Filling Machine Price For Capsule
CategoriesCapsule Filling Machine
AlbumView larger image
BrandLTPM CHINA
ModelJTJ-A
ApplicationCapsule size 00#-5#
Vacuum PumpPusch
Capacity Of air compressor0.1bar
NoiseLess than 60dB (A)
Gross Weight525Kg
Power Supply380V 50Hz 2.2Kw
FOB portNINGBO
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2019-10-17
Detail Information

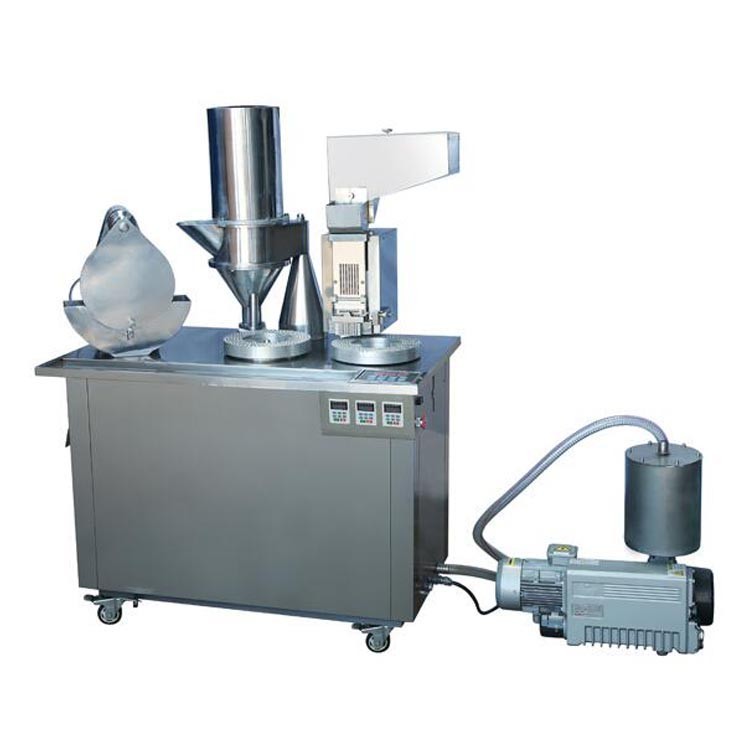

Semi Automatic CE certified  Capsule Filling Machine

Description:



JTJ-A Semi-Automatic Capsule Filling Machine The product is special capsule filling machine which is suitable for medium and small pharmaceutical factory, hospital preparation lab, etc. The machine adopted programmable control system, touch panel operation, stepless transduction speed-shift, and electronic automatic counter. And it automatically completes the action of position, separation, filling, locking, etc. The dosage is accurate, and the operation is convenient. The overall machine is made of stainless steel, and it is suitable for the capsule which is filled with powder and grain.










Product Features:



1. It adopts Cycloid Motor for making machine in lowest sound running. There three Cycloid Motor in this machine.

2. JTJ-A adopts TouchButton for operating. It will be hard for making powder into Controlling System.

3. Easy for Changing Mould from Size 00 to 5#

4. The machine is whole Body stainless steel. Capsule Feeder is Copper, Capsule Disk is Aluminum Disk, Capsule Locking position Copper. (For Detailed please see following Mould List)

5.We call the Semi Automatic Capsule Filling Machine operating THREE STEPS,Operator is easy to know how to Separate Capsules, Filling Capsules, Locking Capsules means Output.





Technical Data



Model:

JTJ-A

Capsule Size:

#00-#5

Vacuum Pump:

XD-040(40m³/hour)

Capacity Of air compressor:

0.1m³/min

Noise:

Less than 60dB (A)

Overall Dimensions:

1200*700*1600mm

Packing Dimensions:

1800*800*1800mm

Net Weight:

330Kg

Gross Weight:

525Kg

Capacity:

12,000capsules/hour

Power Supply:

380V 50Hz 2.2Kw





Machine Details





capsule plate.jpg



























     Capsule Sowing System



















           Powder Feeding System

































         Capsule Locking System





















             Capsule Disc
