FLP-5 High Efficiency Boiling Dryer Fluid Bed Drying Machine for granule powder

FLP-5 High Efficiency Boiling Dryer Fluid Bed Drying Machine for granule powder

FLP-5 High Efficiency Boiling Dryer Fluid Bed Drying Machine for granule powder
FLP-5 High Efficiency Boiling Dryer Fluid Bed Drying Machine for granule powderFLP-5 High Efficiency Boiling Dryer Fluid Bed Drying Machine for granule powderFLP-5 High Efficiency Boiling Dryer Fluid Bed Drying Machine for granule powder
CategoriesFluid Bed Dryer
AlbumView larger image
BrandLTPM CHINA
ModelFLP-5
ModelFLP-5
Production capacity(kg\batch)1-5
Temperature of inlet air (℃)indoor ~100℃ adjusting
Power of fan4kw
Electric heater9kw
Total power13kw
Pressure of compressed air0.45Mpa
Consumption of compressed air0.6 cubic meters/min
Heating MethodElectric heating
Material of PartsSS304
Unit PriceUS $ 21800 / piece
FOB portNingbo
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2019-10-17
Detail Information

FLP-5 High Efficiency Boiling Dryer Fluid Bed Drying Machine for granule powder

FLP-5 Includes:

1.All Parts SS304

2.Heating Method:Electric heating

3.PLC control


Function Feature & Principle of Action:

This machine is suitable for granulating, &coating for powder/granules/ in container by spray binder/coating material.

The principle of action is based on: Put the powder material into the fluid bed. The cold air is drawn into the fluid bed through the pre, middle and final filters (HEPA) and passes through the heating chamber behind the main machine, heated to the desired temperature by the heater. The material is fluidized in the fluid bed regularly as turbojet. The binder for granulating/coating material is delivered to the nozzle by the liquid pump, which is sprayed to the fluidized material after being sheared into droplets by air.

The evaporating moisture is drawn out by the fan.

Top Fluiding:



Bottom Coating:


Main Technical Parameters:

Number

Item

Unit

Model/specification

1

Productive capacity

Kg/batch

1-5

2

Power of fan

Kw

4

3

Electric heater

Kw

9

4

Total power

Kw

13

5

Pressure of compressed air

Mpa

0.45

6

Consumption of compressed air

M3/min

0.6

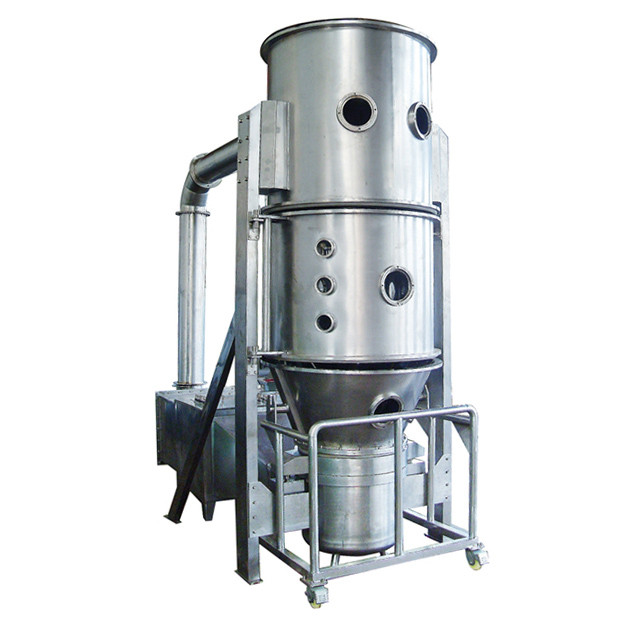

Machine Picture:

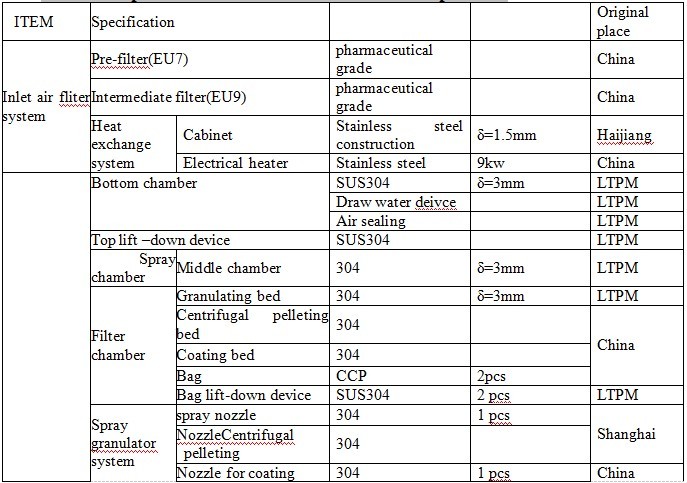

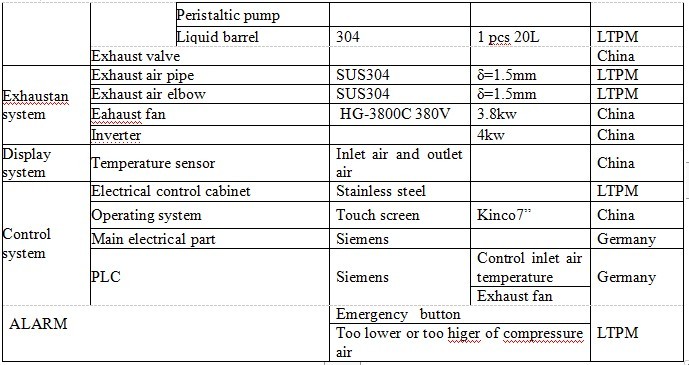

The Basic Options which are included in the complete set:


Easy Damaged Parts (2 years):

Item

Number

Place of production

Bag filter

2sets

LTPM

Silicon sealing

20m

Silicon sealing

20m

Pressure tube

240m

Market product
